Technical parameter：
Chemical Composition | C | Si | Mn | P | S | Cr | Mo | Ni | V | N |
0.14 | 1 | 1 |
|
| 26-30 | 5-7 | 1 |
| 0.25 |
|
|
|
|
|
|
|
|
| ASTMF 1537 |
Basic information:
CoCr28Mo(forge) is a high performance medical alloy material with excellent heat resistance, high strength, corrosion resistance and oxidation resistance. It is mainly used in the medical field where high temperature, high pressure and high corrosive environment are required.
Applicable standards:
Europe | USA | Other |
| ASTMF 1537 | 1SO5832-12AIloy1/2 |
Mechanical properties:
EXECUTIONS |
Diameters | ≥2,00mm |
Tolerances | IS0 h8 (up to h5) |

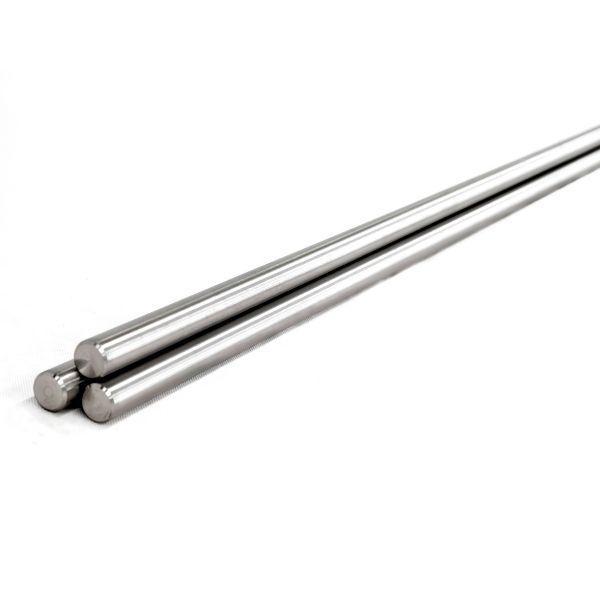

Delivery conditions | in cold drawn or ground 3m bars and Coils |
MECHANICAL PROPERTIES |
Tensile strength | ≥ 1000 N/mm? |
Proof stress | ≥ 700 N/mm? |
Elongations | ≥12% |
Hardness | ≥ 28 HRc |
Heat treatment | tempered: 1075 -1150°C, air cooling |
Cutting speed | 10 -15 m/min |
Medical application product range:
For the manufacture of orthopedic implants, such as artificial joints, bone fixation devices, etc., in the dental field, CoCr28Mo(forge) alloy is also used for the manufacture of implants, such as dental implants, crowns, etc.
